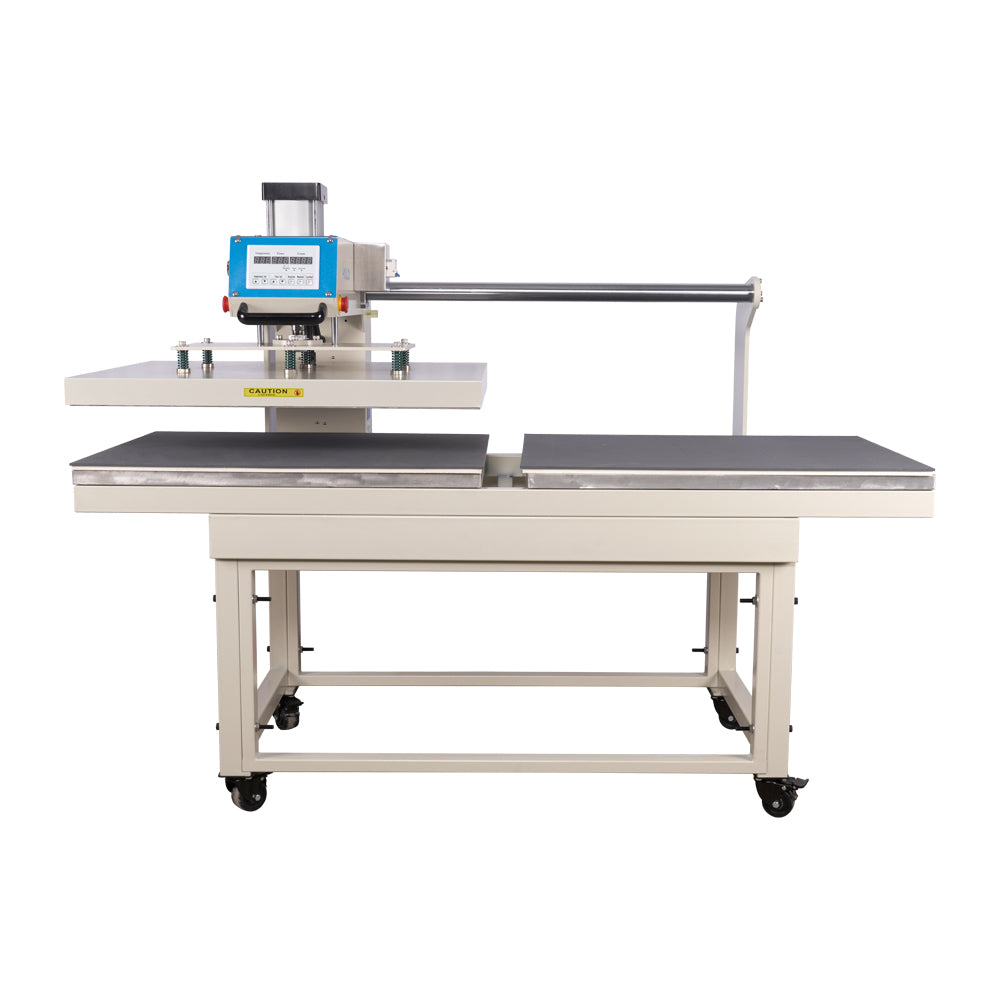

24x40 large formart pneumatic up sliding dual platen heat press machine

24x40 large formart pneumatic up sliding dual platen heat press machine

Our Price

$4,518.99 USD (each)

Market Price $7,973.99
You Save 43% ($3,455)
Our Price

$4,518.99 USD (each)

📣 Please SELECT CORRECT Variant & Quantity before place an order and you will receive what you SELECT

Buy on Amazon
website checkout security

Specifications

Place of Origin China
Main Color White+Blue
Main Material Aluminium
Dangerous Goods #dangerFlag#

Dimensions & Weights

Assembled Length (in.) 83.00
Assembled Width (in.) 36.00
Assembled Height (in.) 38.00
Weight (lbs) 396.90

Product Features

  • 1. Multiple time settings heat press machine
  • 2. Full digital integrated display control, temperature, time, counting
  • 3. Aluminum heat plate with die casting heating pipe
  • 4. Sliding heat plate head design
  • 5. Easily adjust the certain pressure
  • 6. High accuracy of signal indication when press process is completed
  • 7. 2.36'' pressure adjustable range can process a wider range of products
  • 8. Powered by an air compressor ( not included)

Description

Upper Slide Pneumatic Double Position Hot Stamping Machine
1. Heat press machine is full digital integrated display control; 2. High accuracy of signal indication when press process is completed; 3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature; 4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency; 5. Special high temperature cloth for hot stamping machine covered 6. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure 7. Heat press machine is automation print once backside inductive screw touched 8. Left and right side bearings parallelly move the heat press machine
General Pressure for 0.4Mpa-0.6Mpa Heat Printing
The heat press machine can adjust to different pressure as needed

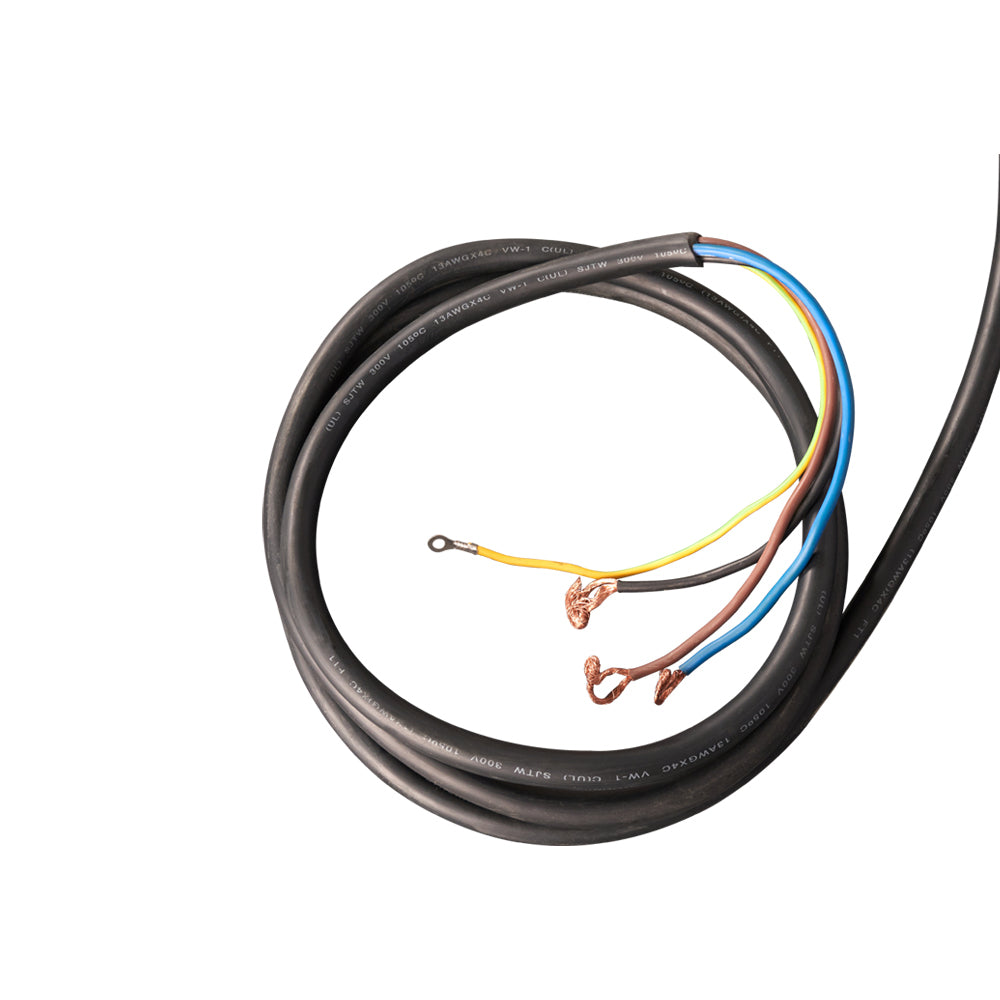

Different Charge Plug Can Be Available Depends on Customers Requirement
1

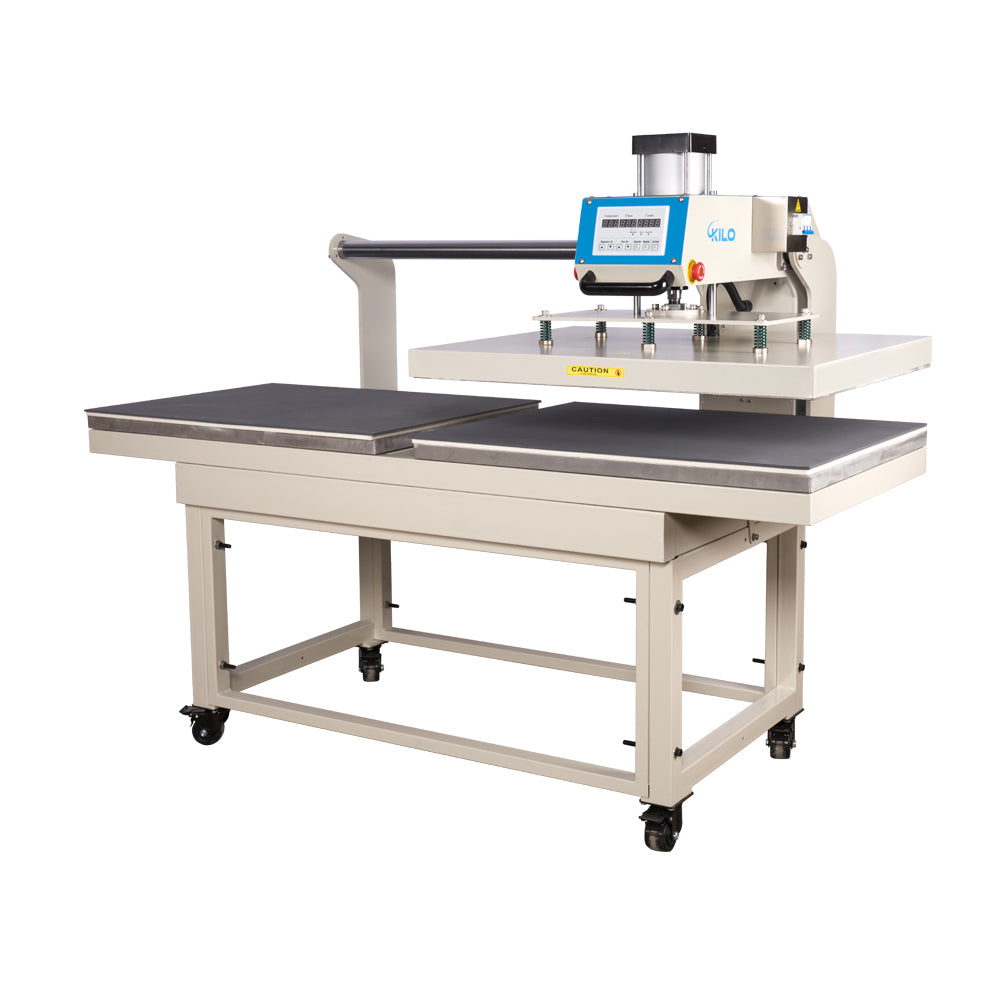

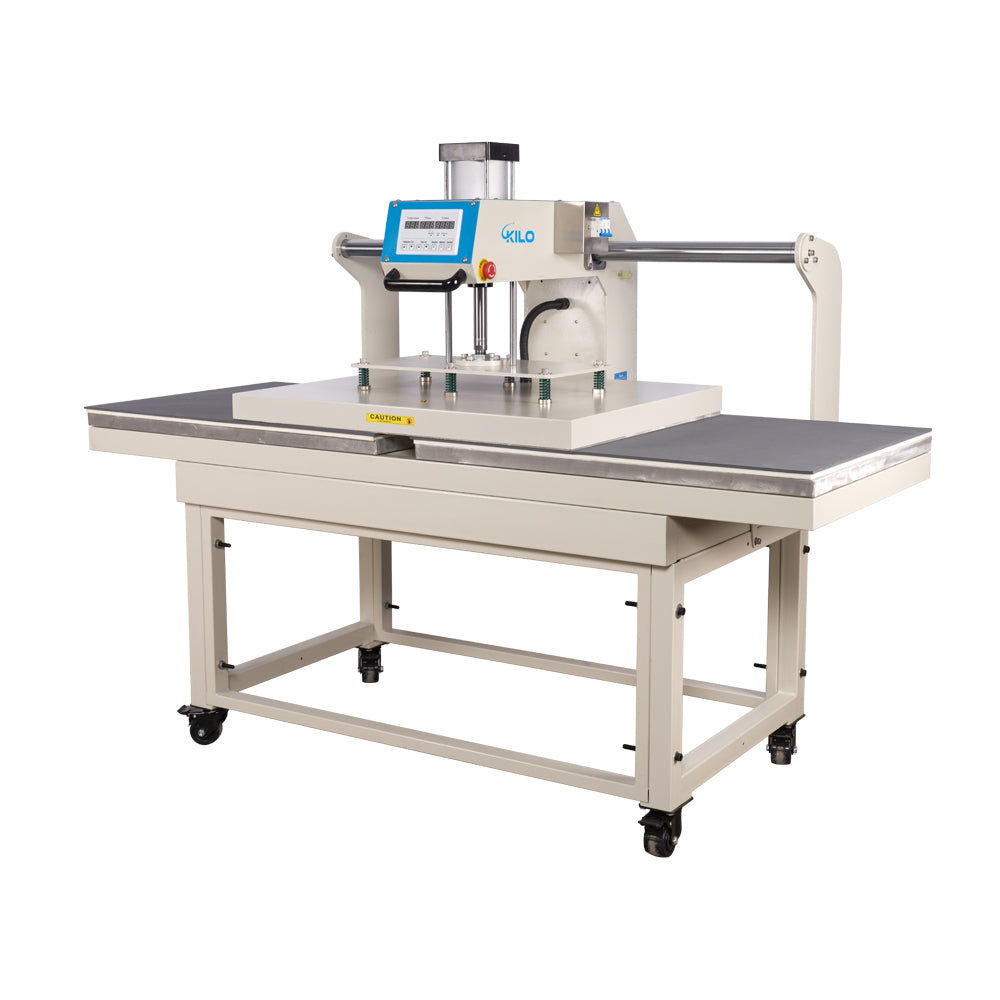

Heat Press Machine with Base Frame for Much Stable Printing and Easy Movement with the Brake Caster
1

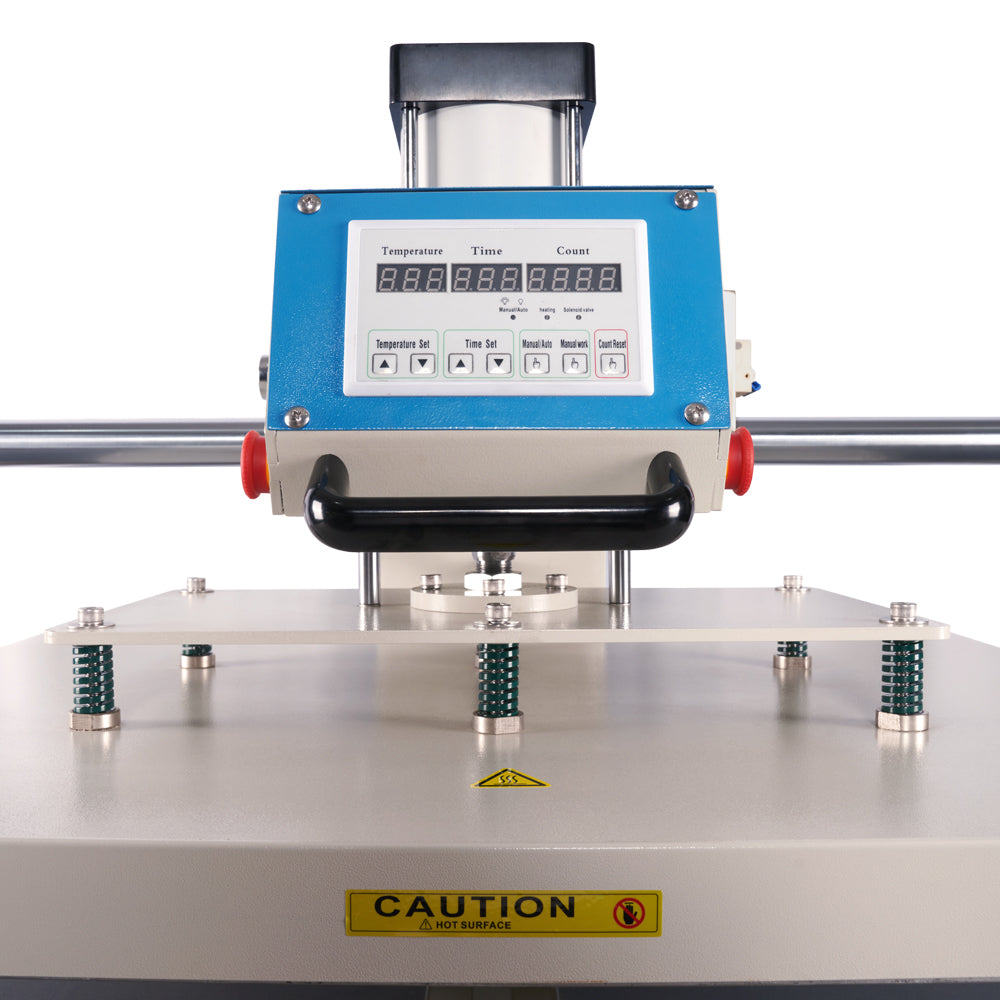

Bright, Large LED Wide Viewing Angle Heat Press Machine
1
Hose for the Air Compressor Included
1
Technical Details
Voltage(V): 220V/ single phase
Power(KW): 7
Temperature(?): 0-299
Delaying Time(S): 1-999
G.W.(LB): 396.9
Packing size(in'): 76.8'' x 37.4'' x 37.45''
Accept Thickness: Max. 2.36'' Thick Items
Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size: 28' x 35'' (70 x 90cm)
Time Requirements of Different Materials
Pure cotton 15s-25s
Polyester 40s
Chemical fiber 10s-40s
Pearl board 60s-100s
Metal pendant 60s
Mousepad 50s
Vitrolite 180s
Key ring pendant 100s
Ceramics 180s
Material Temperature
Pure cotton 356℉-428℉ (180℃-220℃)
Polyester 356℉ (180℃)
Chemical fiber 302℉-356℉ (150℃-180℃)
Pearl board 356℉ (180℃)
Metal pendant 356℉ (180℃)
Mousepad 374℉ (190℃)
Vitrolite 392℉ (200℃)
Ceramics 356℉-428℉ (180℃-220℃)
